PBC6

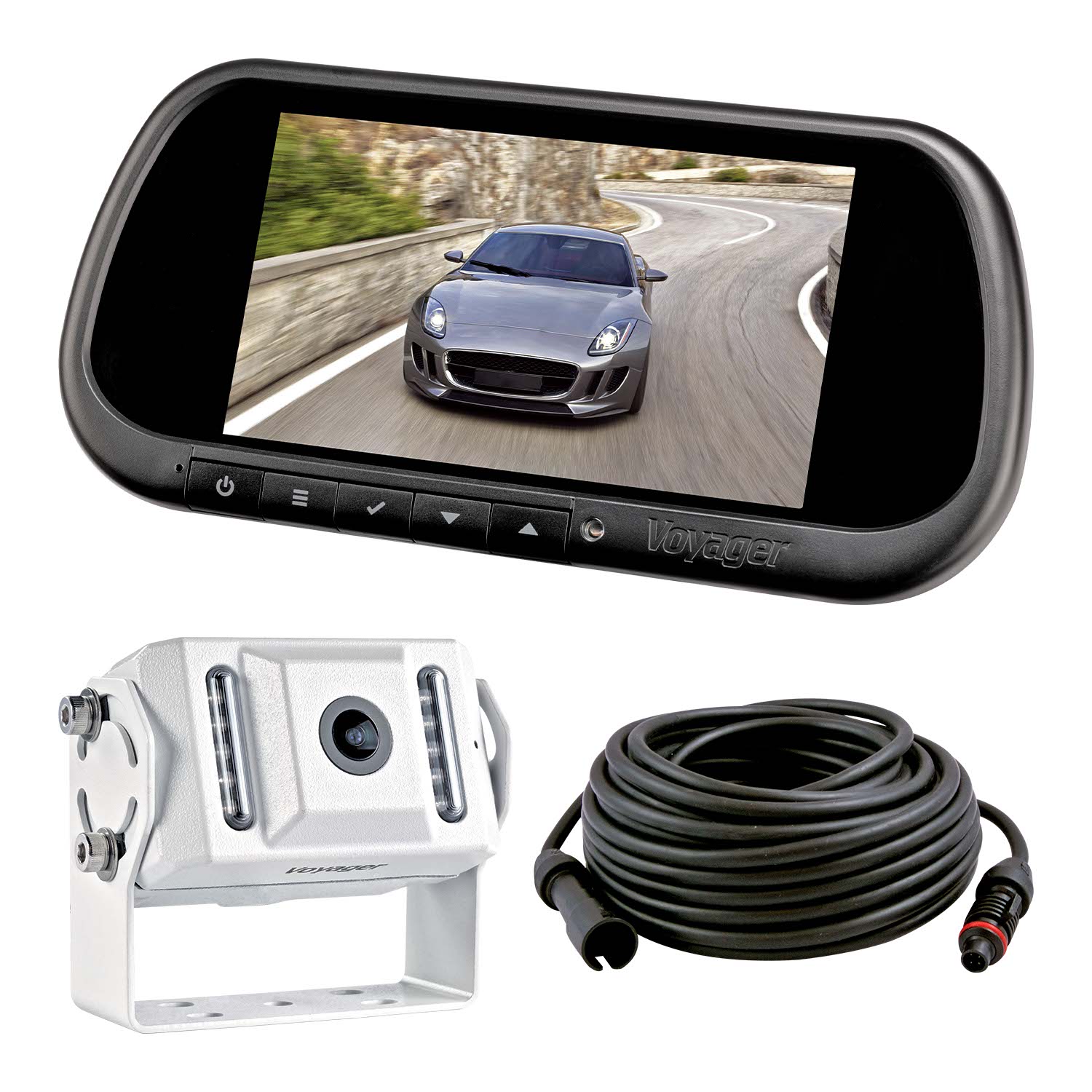

•Kit includes VOM74MM monitor and VCMS155 camera
•Monitor Features
•Supports 3 cameras with manual or triggered source selection
•Rearview mirror replacement monitor
•7-inch wide format color TFT LCD display
•On-Screen Display (OSD) for AV source, picture adjustment, and
volume control
•Manual and auto-dimming feature with screen saver mode
•Mechanical buttons with white backlit illumination
•Non-volatile memory
•Built-in speaker
•12 volt DC power
•NTSC and PAL video signal compatible
•800 W x 450 H screen resolution
•70° top, 50° bottom, 70° left, 70° right viewing angles
•400 nit brightness
•500:1 contrast ratio
•Analog 16:9 aspect ratio
•Camera Features
•Multi-use camera
•White
•High performance color optics
•1⁄4-inch CMOS sensor
•Electronic Automatic iris
•Selectable mirror or normal image orientation
•420 TV line resolution
•0 Lux sensitivity
•140° diagonal, 112° horizontal, 80° vertical angle of view
•10 LEDs for low light assistance
•Microphone
•Aluminum housing
•Waterproof
•Corrosion resistant
•NTSC video signal compatible
•12 volt DC power
