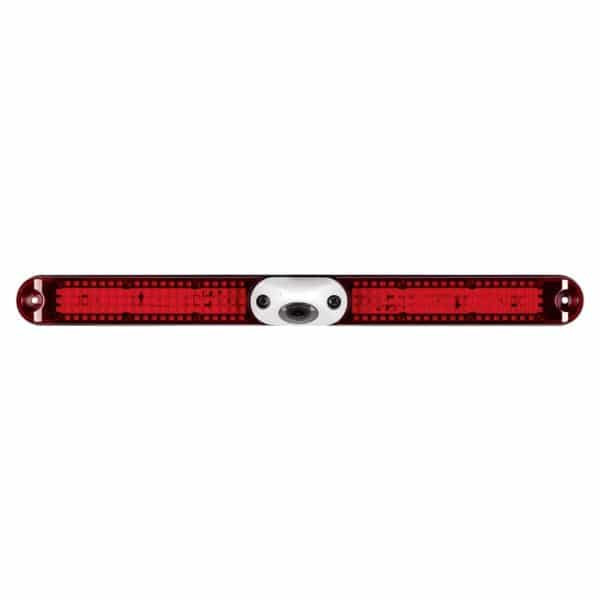

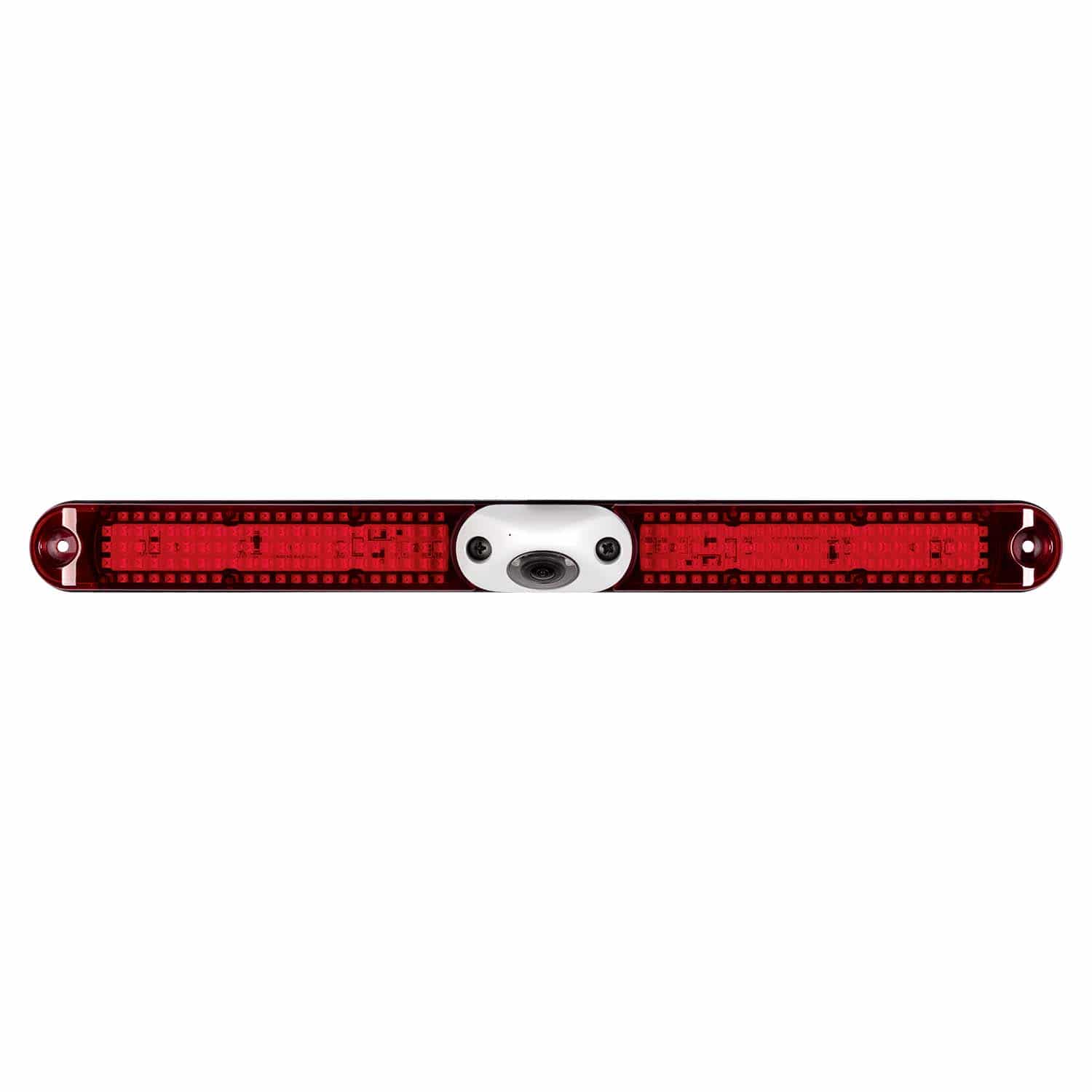

VCAHD140LB

SKU # 35418

• Surface mount light bar with camera
• Single pass wire entry installation
• Automotive exterior lighting-grade polycarbonate
• FMVSS108 compliant
• Analog high definition
• High performance color optics
• 1/3-inch CMOS sensor
• Electronic automatic iris
• Mirror image orientation
• 1200 TV line resolution
• 0 Lux sensitivity
• 146° diagonal, 129° horizontal, 86° vertical angle of view
• IR low light assistance
• Impact-resistant aluminum housing
• Microphone
• Waterproof
• Corrosion resistant
• NTSC video signal compatible
• 12 volt DC power

Weight 1 lbs
Overall Dimensions

15.6" W x 1.4" H x 2.2" D
Camera Type

CMOS
Position On Vehicle

Rear
Power System

12VDC
Video Output Signal

NTSC
Shutter Type

Electronic Iris
Image Orientation

Mirror (Reversed)
Waterproof Rating

Yes
Viewing Angle (Degrees)

146
Sensor Size (Inches)

1/3

Literature

LIT-VCAHD140LB.pdf

Web Photo


Installation Guide

IG10003 2021 Ford E350 Install Guide.pdf

Product Change Notice

VCAHD140LB - VCAHD140LB2 COO.pdf
