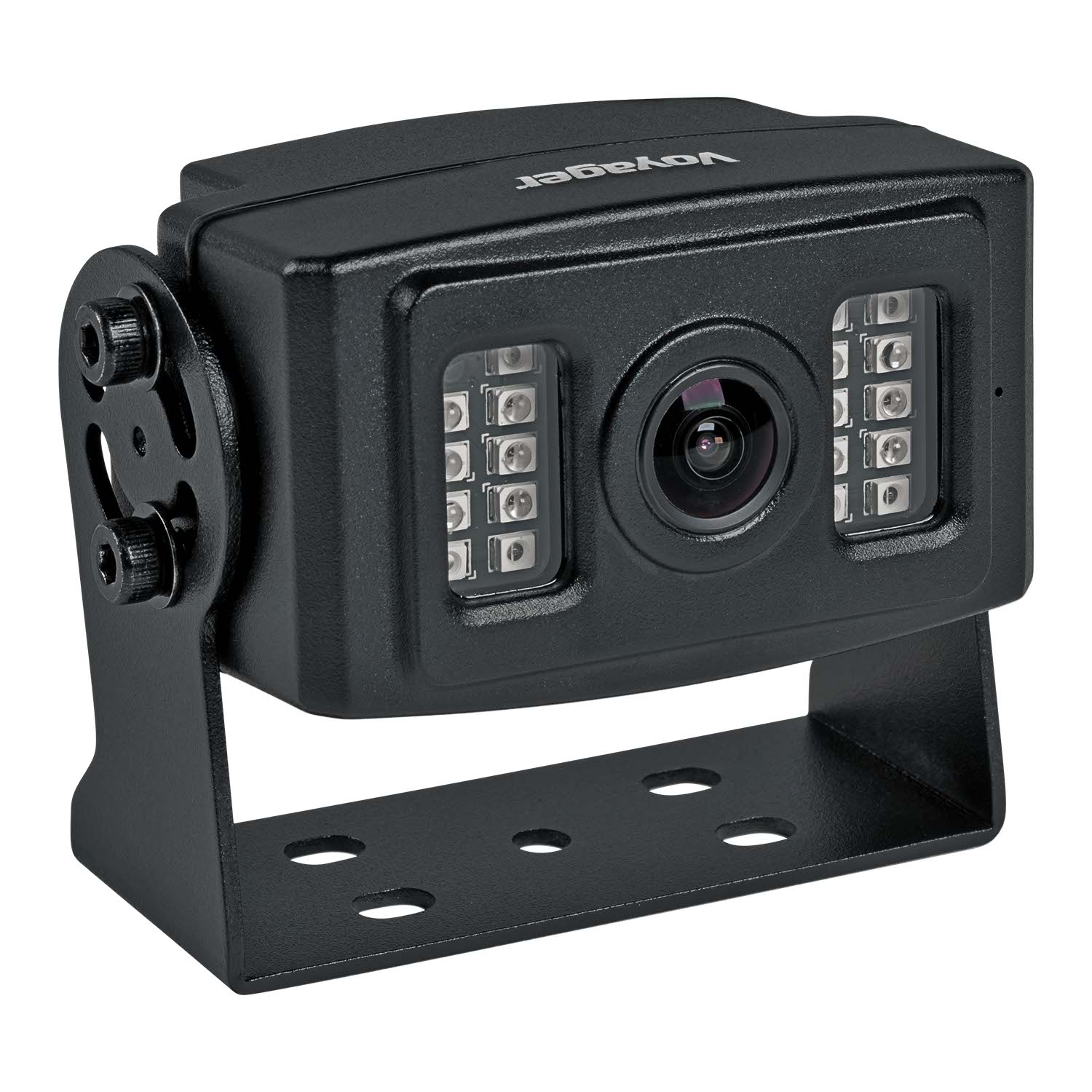

VCMS20B

SKU # 35234

• Multi-use camera
• Available in black (VCMS202B) or white (VCMS202)
• High performance color optics
• 1/3-inch CMOS sensor
• Electronic automatic iris
• Selectable mirror or normal image orientation
• 600 TV line resolution
• 0 Lux sensitivity
• 145° diagonal, 109° horizontal, 93° vertical angle of view
• 19 LEDs for low light assistance
• Aluminum housing
• Microphone
• Waterproof
• Corrosion resistant
• NTSC video signal compatible
• 12 volt DC power

Weight 1 lbs
Camera Type

CMOS
Position On Vehicle

Rear
Power System

12VDC
Video Output Signal

NTSC
Shutter Type

Electronic Iris
Image Orientation

Normal/Mirror
Waterproof Rating

IP69K
Viewing Angle (Degrees)

•145° diagonal, 109° horizontal, 93° vertical angle of view
Sensor Size (Inches)

1/3
Overall Dimensions

1.61" x 1.82" . 2.75"

Literature

LIT-CVPS19.pdf
LIT-VCMS20B.pdf
LIT-VCMS20.pdf
VCMS202-VCMS202B.pdf
Lit-CVPS192.pdf

Owners Manual

vcms20b_user_manual.pdf

Product Change Notice

VCMS155-B - VCMS20-B - PRODUCT CHANGE NOTICE-CV.pdf
VCMS155B - VCMS20B - PRODUCT CHANGE NOTICE.pdf
CVPS19 - CVPS192 COO.pdf
PCN-VCMS20B-VCMS24B.pdf

Web Photo
