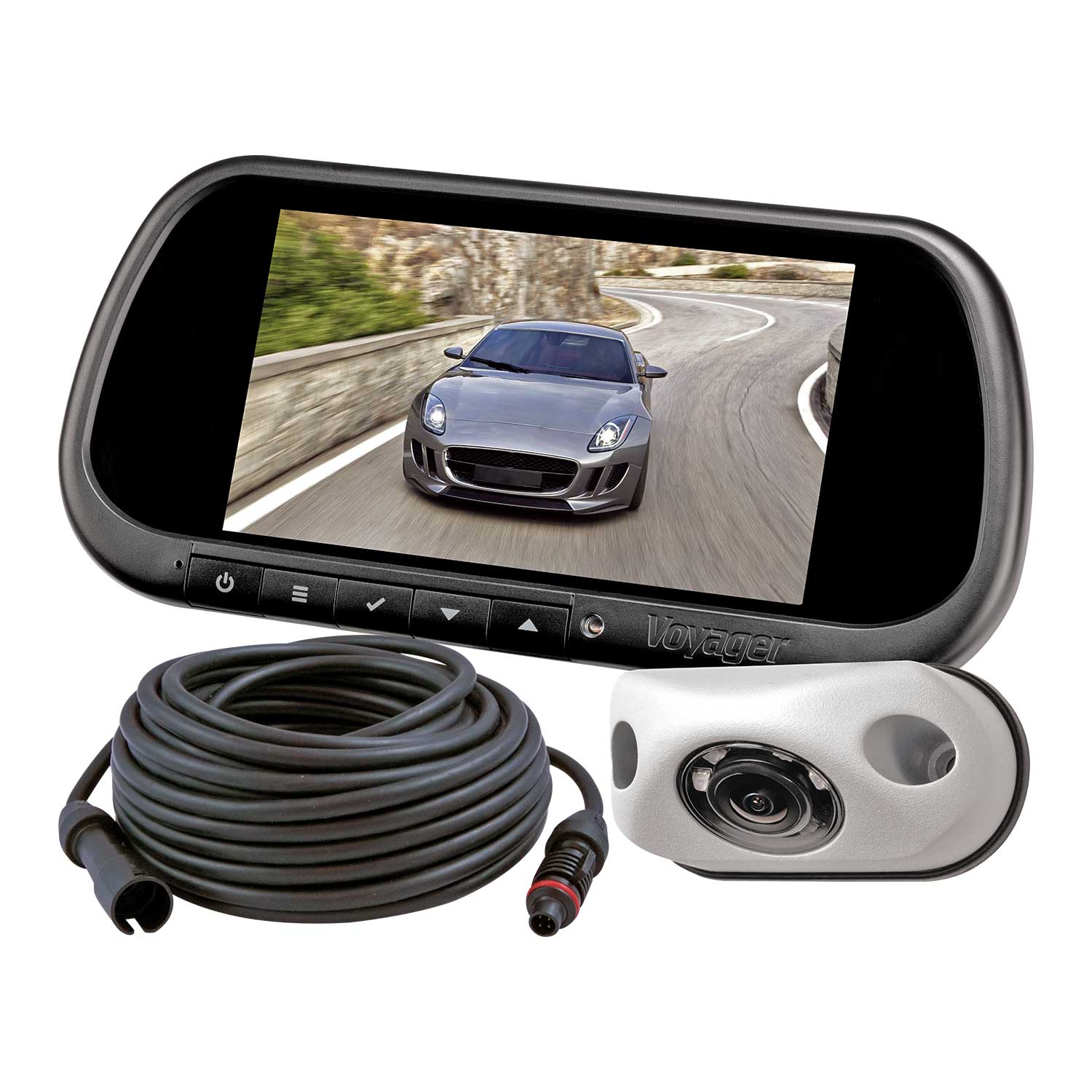

System includes: Voyager VOM74MM monitor, VCAHD140I camera, and proprietary cables.
VOM74MM Monitor Features:
• Supports 3 cameras with manual or triggered source selection
• Rearview mirror replacement monitor
• 7-inch wide format color TFT LCD display
• On-Screen Display (OSD) for AV source, picture adjustment, and volume control
• Manual and auto-dimming feature with screen saver mode
• Mechanical buttons with white backlit illumination
• Non-volatile memory
• Built-in speaker
• 12 volt DC power
• NTSC and PAL video signal compatible
• 800 W x 450 H screen resolution
• 70° top, 50° bottom, 70° left, 70° right viewing angles
• 400 nit brightness
• 500:1 contrast ratio
• Analog 16:9 aspect ratio
VCAHD140I Camera Features:
• Surface mount multi-use camera
• Analog high definition
• High performance color optics
• 1/3-inch CMOS sensor
• Electronic automatic iris
• Mirror image orientation
• 1200 TV line resolution
• 0 Lux sensitivity
• 146° diagonal, 129° horizontal, 86° vertical angle of view
• IR low light assistance
• Impact-resistant aluminum housing
• Microphone
• Waterproof
• Corrosion resistant
• NTSC video signal compatible
• 12 volt DC power
