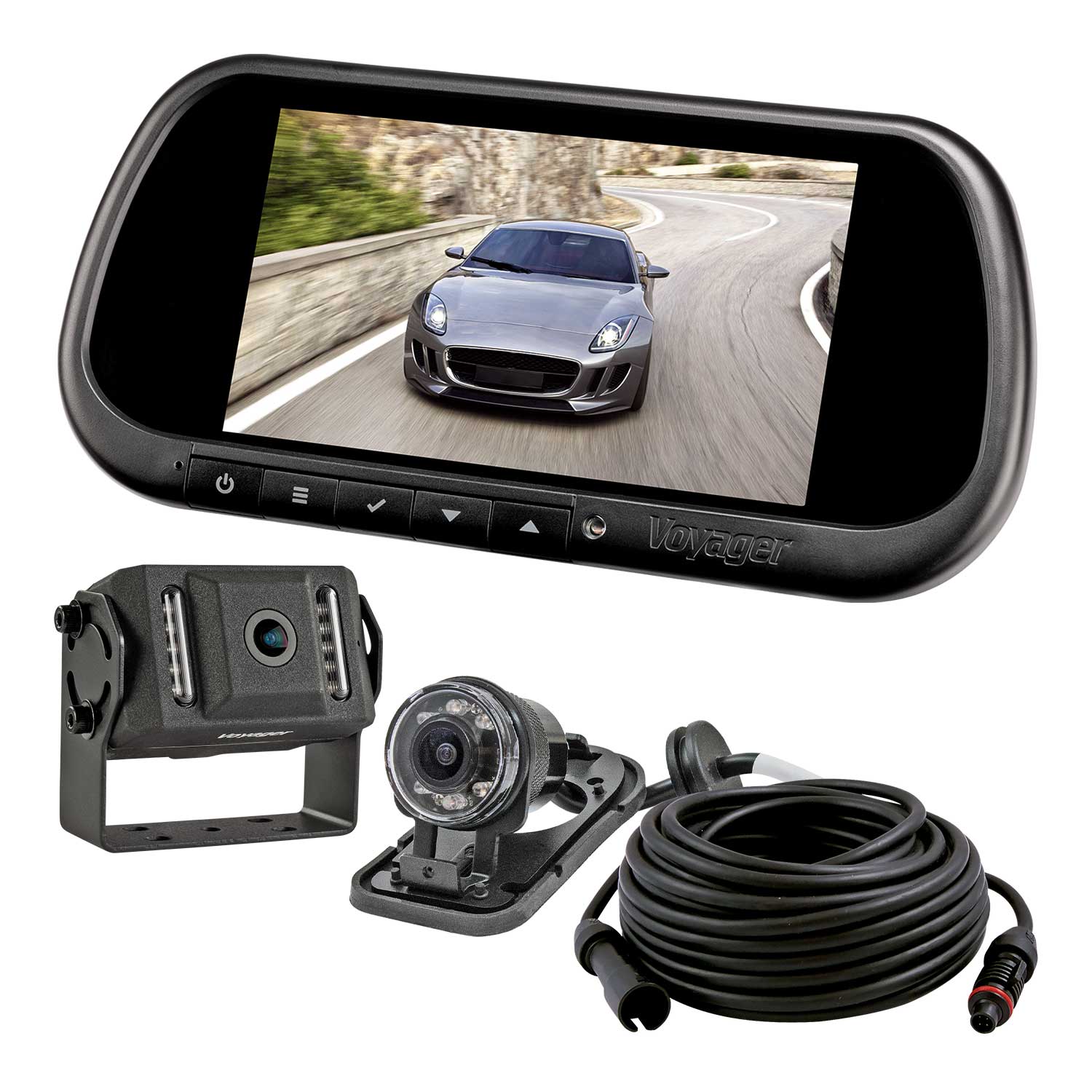

System includes: Voyager VOM74MM monitor, VCMS155B camera, VCMSYL50I, and proprietary cables.
VOM74MM Monitor Features:
• Supports 3 cameras with manual or triggered source selection
• Rearview mirror replacement monitor
• 7-inch wide format color TFT LCD display
• On-Screen Display (OSD) for AV source, picture adjustment, and volume control
• Manual and auto-dimming feature with screen saver mode
• Mechanical buttons with white backlit illumination
• Non-volatile memory
• Built-in speaker
• 12 volt DC power
• NTSC and PAL video signal compatible
• 800 W x 450 H screen resolution
• 70° top, 50° bottom, 70° left, 70° right viewing angles
• 400 nit brightness
• 500:1 contrast ratio
• Analog 16:9 aspect ratio
VCMS155B Camera Features:
• Multi-use camera
• High performance color optics
• ¼-inch CMOS sensor
• Electronic Automatic iris
• Selectable mirror or normal image orientation
• 420 TV line resolution
• 0 Lux sensitivity
• 140° diagonal, 112° horizontal, 80° vertical angle of view
• 10 LEDs for low light assistance
• Microphone
• Aluminum housing
• Waterproof
• Corrosion resistant
• NTSC video signal compatible
• 12 volt DC power
VCMSYL50I Camera Features:
• Compact observation camera
• High performance color optics
• 1⁄4 inch CMOS sensor
• Electronic automatic iris
• Mirrored image orientation
• 400 TV line resolution
• 0 Lux sensitivity
• 150° diagonal, 120° horizontal, 90° vertical viewing angles
• IR low light assist
• Waterproof
• Corrosion resistant
• NTSC video signal
• 12 volt DC
