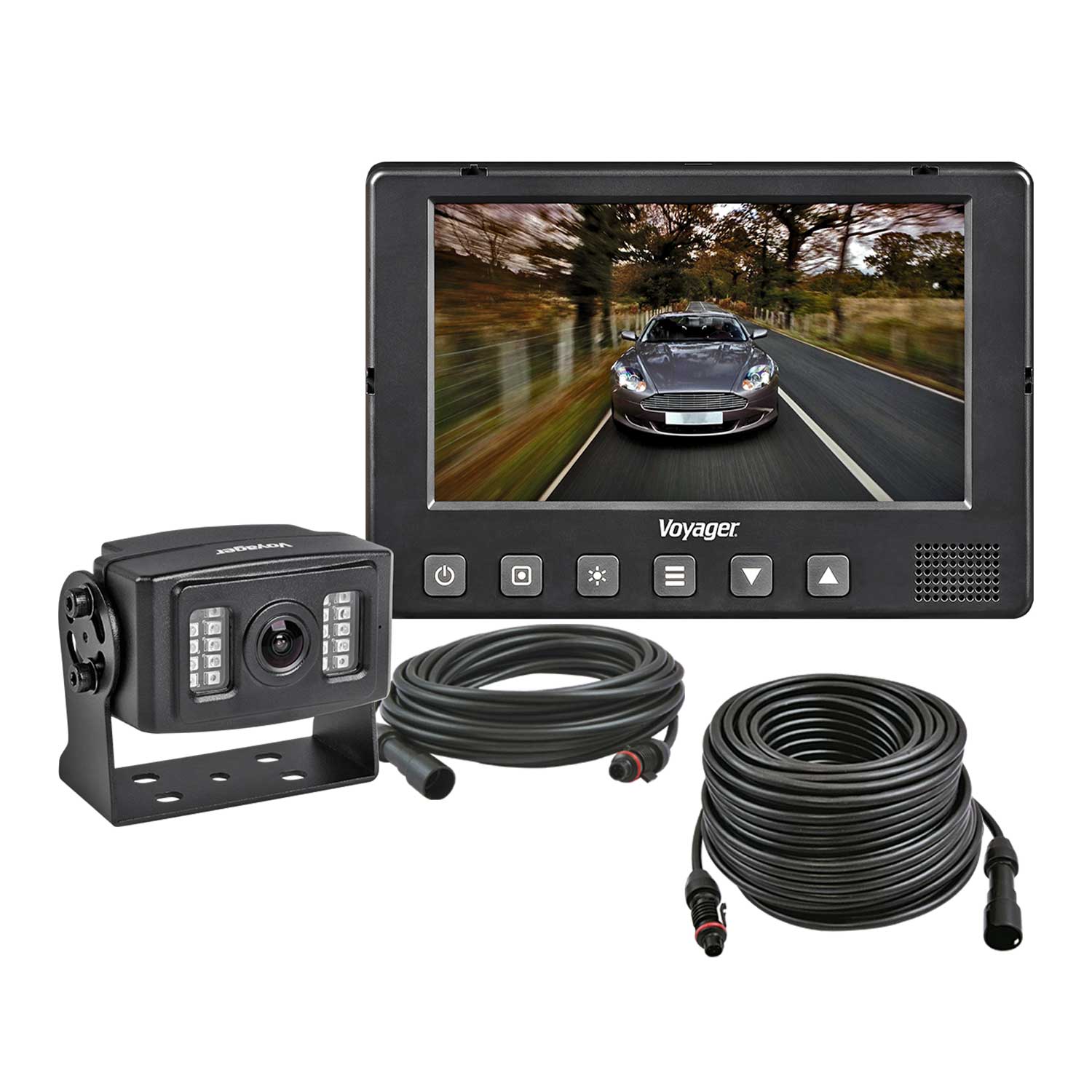

System includes: Voyager VOM719WP monitor, VCMS20B camera, 4-inch monitor mount, and proprietary cables.
VOM719WP Monitor Features:
• Supports 4 cameras with 6 triggers including Single image, Split-screen, and QuadView display modes
• 7-inch digital wide format color TFT LCD display
• DC auto source for switching triggers (turn signal compatible)
• Manual day/night display brightness controls
• Backlit control buttons
• Heady duty waterproof construction
• Rated and tested to withstand 4G continuous vibration
• AMPS mounting provisions
• Built-in speaker
• Removable sun visor included
• 12 volt DC power
• NTSC and PAL video signal compatible
• 800 W x 450 H screen resolution
• 60° top, 70° bottom, 75° left, 75° right viewing angles
• 500 nit brightness
• 500:1 contrast ratio
• 16:9 aspect ratio
VCMS20B Camera Features:
• Multi-use camera
• High performance color optics
• 1/3-inch CMOS sensor
• Electronic automatic iris
• Selectable mirror or normal image orientation
• 600 TV line resolution
• 0 Lux sensitivity
• 145° diagonal, 109° horizontal, 93° vertical angle of view
• 19 LEDs for low light assistance
• Aluminum housing
• Microphone
• Waterproof
• Corrosion resistant
• NTSC video signal compatible
• 12 volt DC power
