WVH100

SKU # 34536

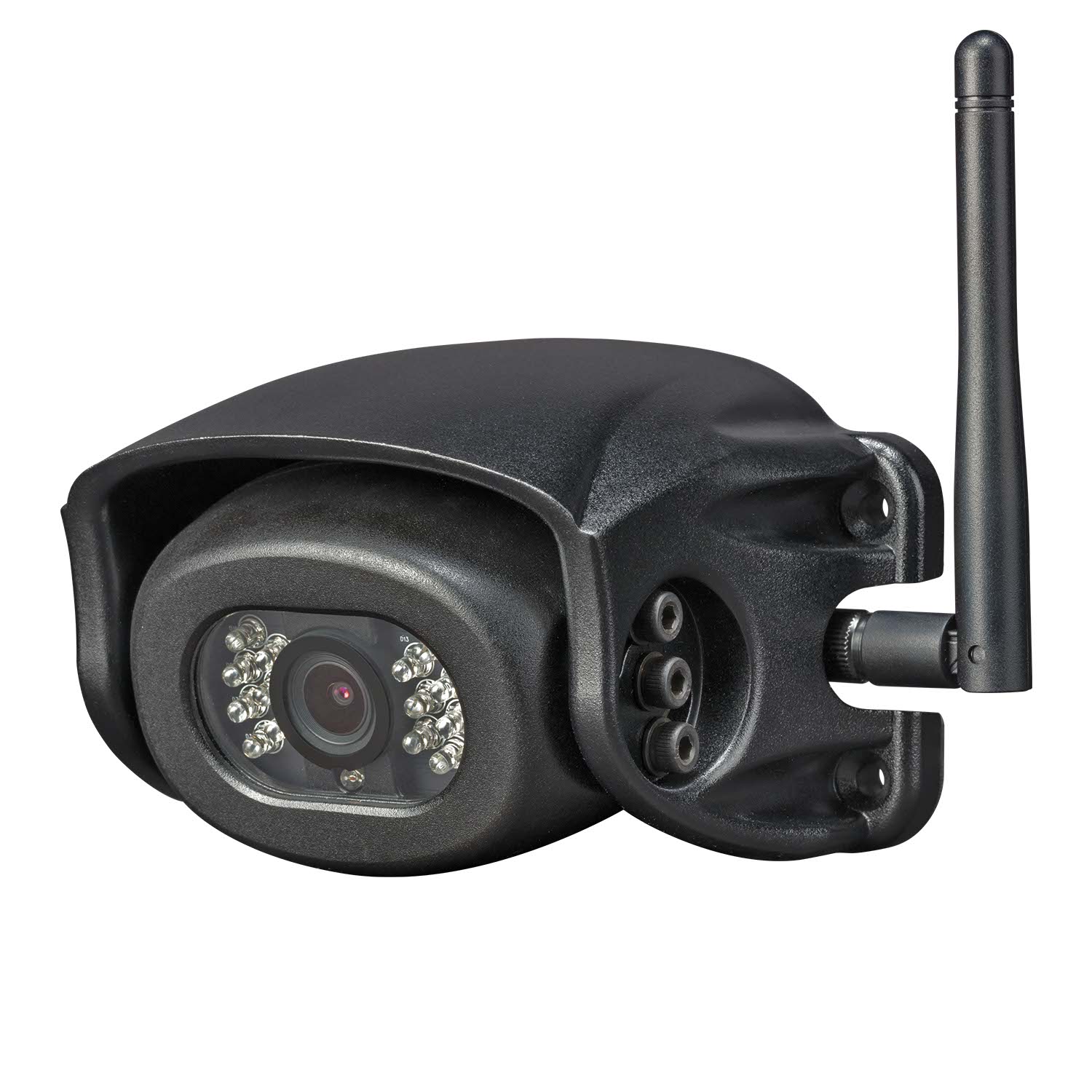

• Rear wireless camera with WiSight technology made for Voyager
Prewire prep plate
• WiSight digital signal transmits through and around objects up to 60
feet away
• High-performance color optics
• 1/3-inch CMOS sensor
• Mirror image orientation
• 380 TV line resolution
• 0 Lux sensitivity
• 135° diagonal, 102° horizontal, 72° vertical viewing angles
• IR LEDs for low light assistance
• Microphone
• Waterproof

Weight 1 lbs
Camera Type

CMOS
Overall Dimensions

5.52" x 3" x 2.82"
Power System

12VDC
Video Output Signal

NTSC
Shutter Type

Electronic Iris
Image Orientation

Mirror (Reversed)
Waterproof Rating

IPX6
Viewing Angle (Degrees)

135°D x 102°H x 72°V
Sensor Size (Inches)

1/3
Position On Vehicle

Rear

Literature

WVH100.pdf
LIT-WVHS43.pdf
LIT-WVHS541.pdf



Web Photo


Product Change Notice

PCN-WVH100 - WVSXC160.pdf
