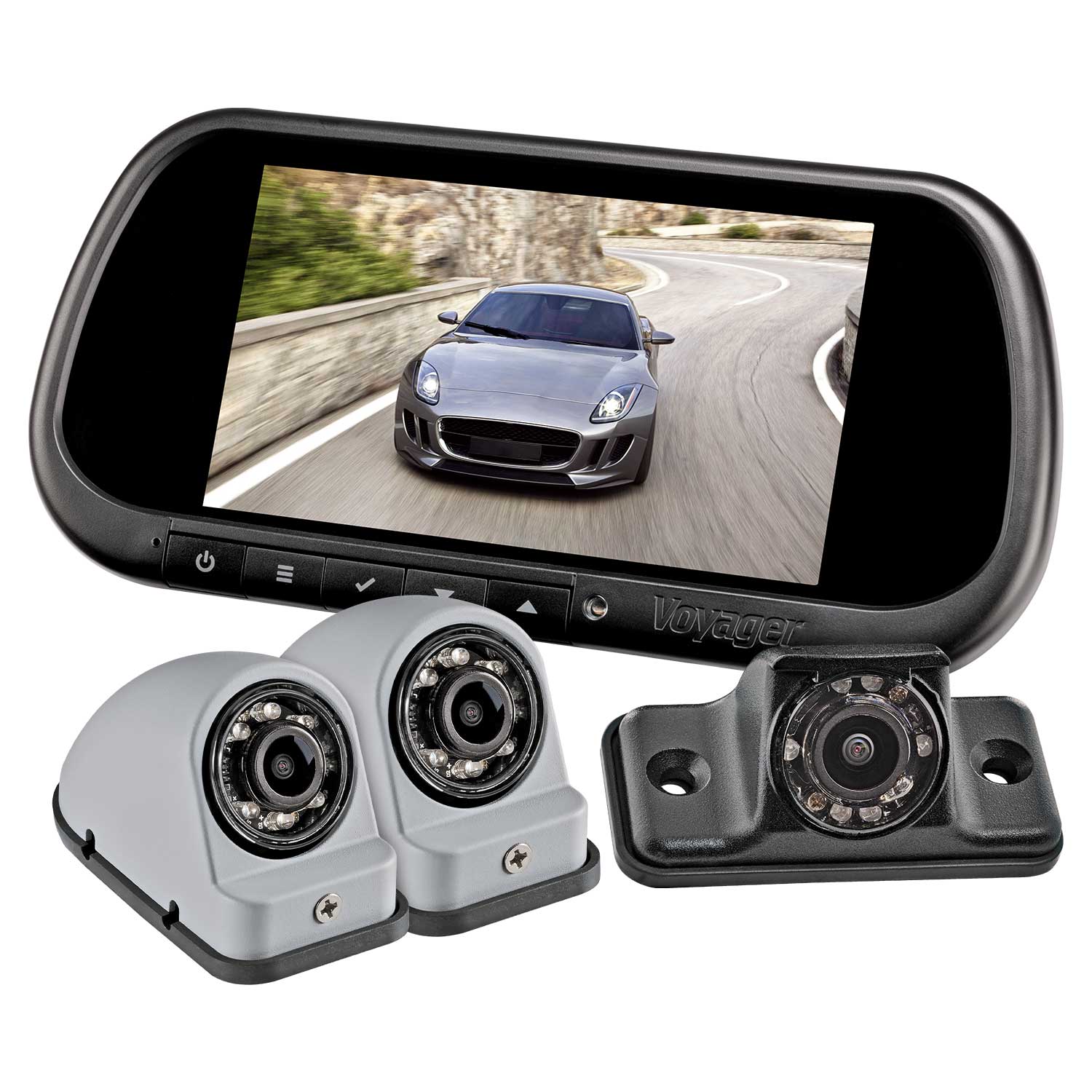

Wired camera system includes one VOM74MM mirror monitor, one VCMS140IB rear camera, one VCMS50RGP right side camera, one VCMS50LGP left side camera, and proprietary cabling.
Monitor Features:
• Supports 3 cameras with manual or triggered source selection
• Rearview mirror replacement monitor
• 7-inch wide format color TFT LCD display
• On-Screen Display (OSD) for AV source, picture adjustment, and volume control
• Manual and auto-dimming feature with screen saver mode
• Mechanical buttons with white backlit illumination
• Non-volatile memory
• Built-in speaker
• 12 volt DC power
• NTSC and PAL video signal compatible
• 800 W x 450 H screen resolution
• 70° top, 50° bottom, 70° left, 70° right viewing angles
• 400 nit brightness
• 500:1 contrast ratio
• Analog 16:9 aspect ratio
Rear Camera Features:
• Surface mount multi-use camera
• High performance color optics
• 1/4-inch CMOS sensor
• Electronic automatic iris
• Mirror image orientation
• 400 TV line resolution
• 0 Lux sensitivity
• 150° diagonal, 120° horizontal, 90° vertical angle of view
• IR low light assistance
• Impact-resistant aluminum housing
• Microphone
• Waterproof
• Corrosion resistant
• NTSC video signal compatible
• 12 volt DC power
Side Camera Features:
• High performance color optics
• ¼-inch CMOS sensor
• Electronic automatic iris
• Normal image orientation
• 380 TV line resolution
• .5 Lux sensitivity
• 78° diagonal, 65° horizontal, 49° vertical angle of view
• IR low light assistance
• Aluminum housing and injected plastic body
• Waterproof
• Corrosion resistant
• NTSC video signal compatible
• 12 volt DC power
